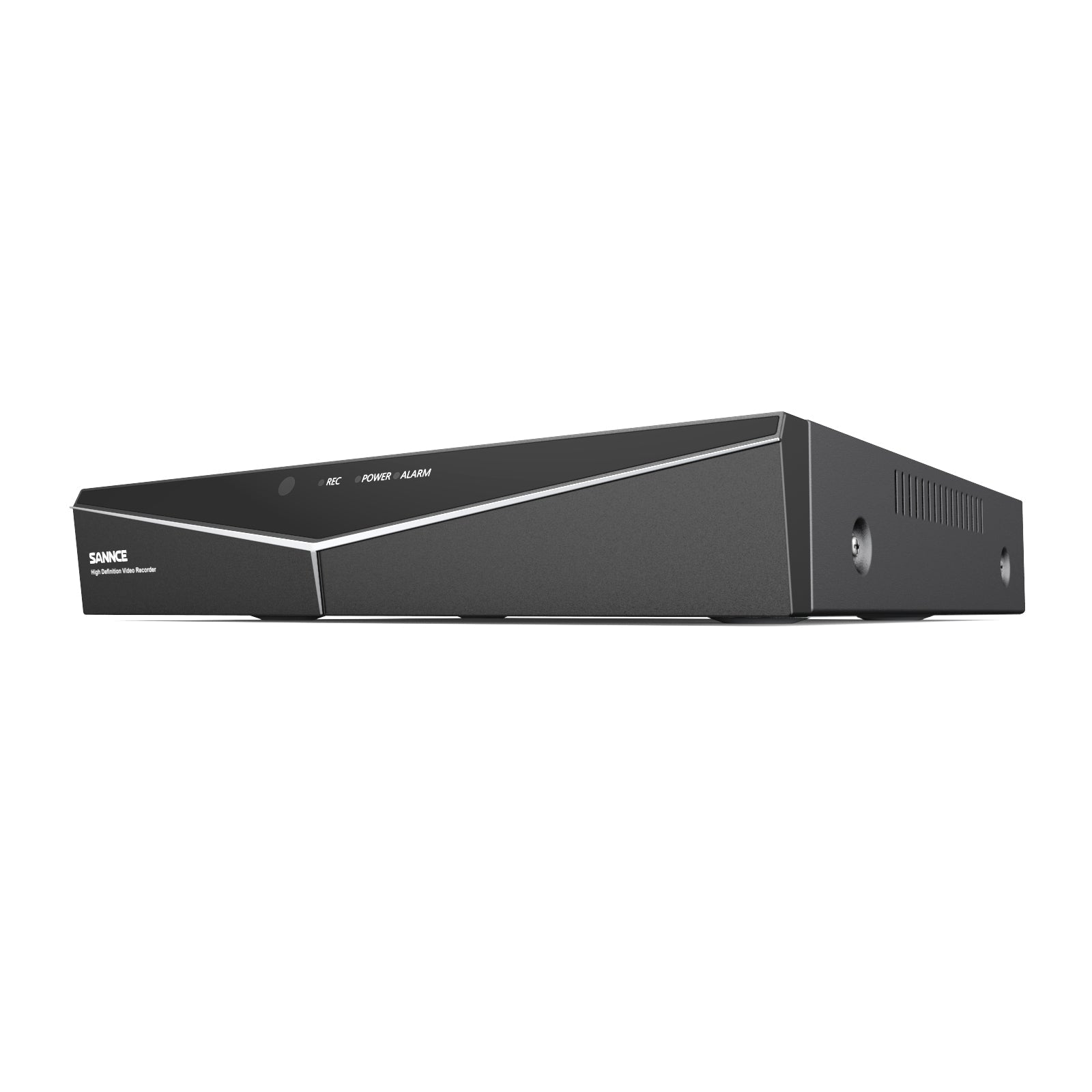

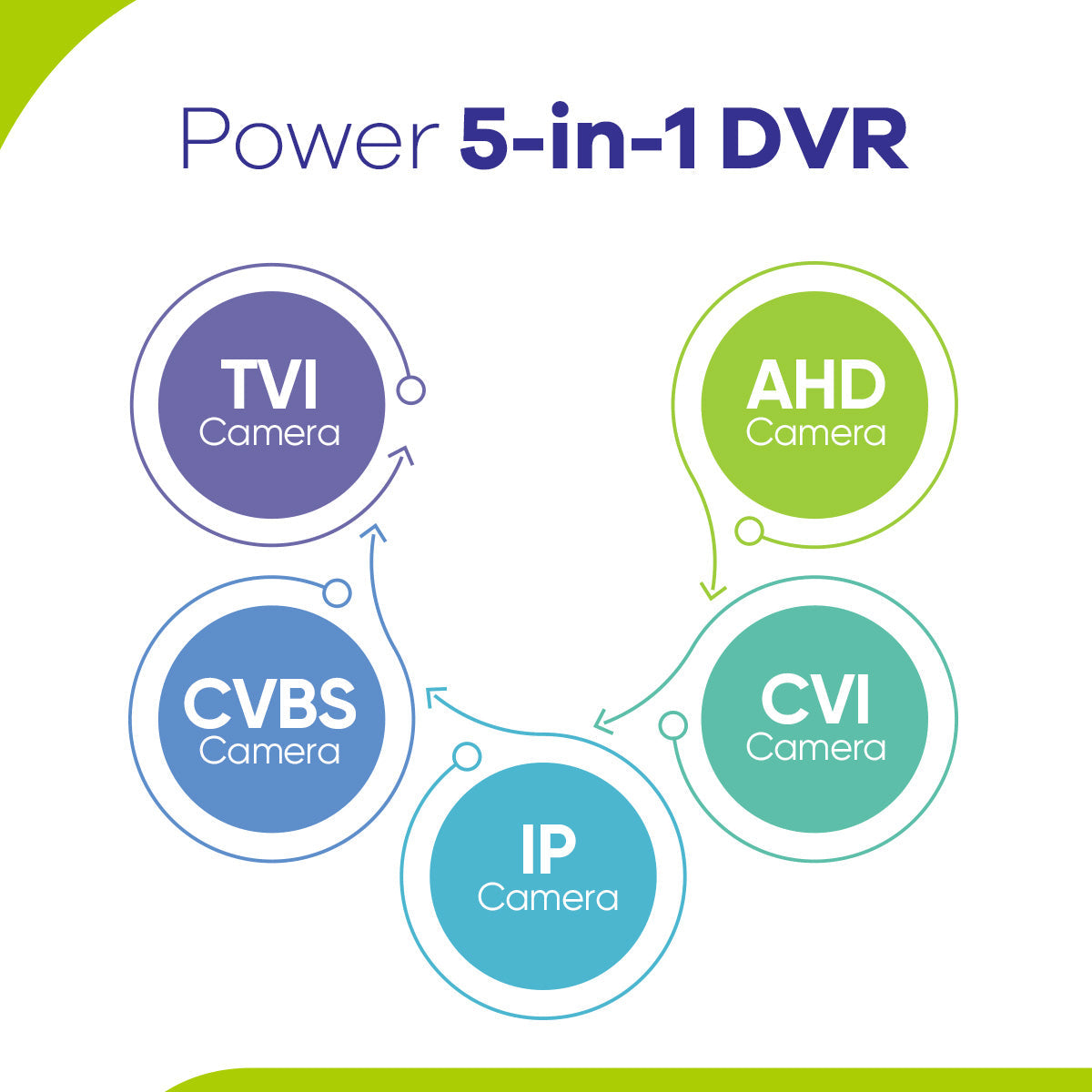

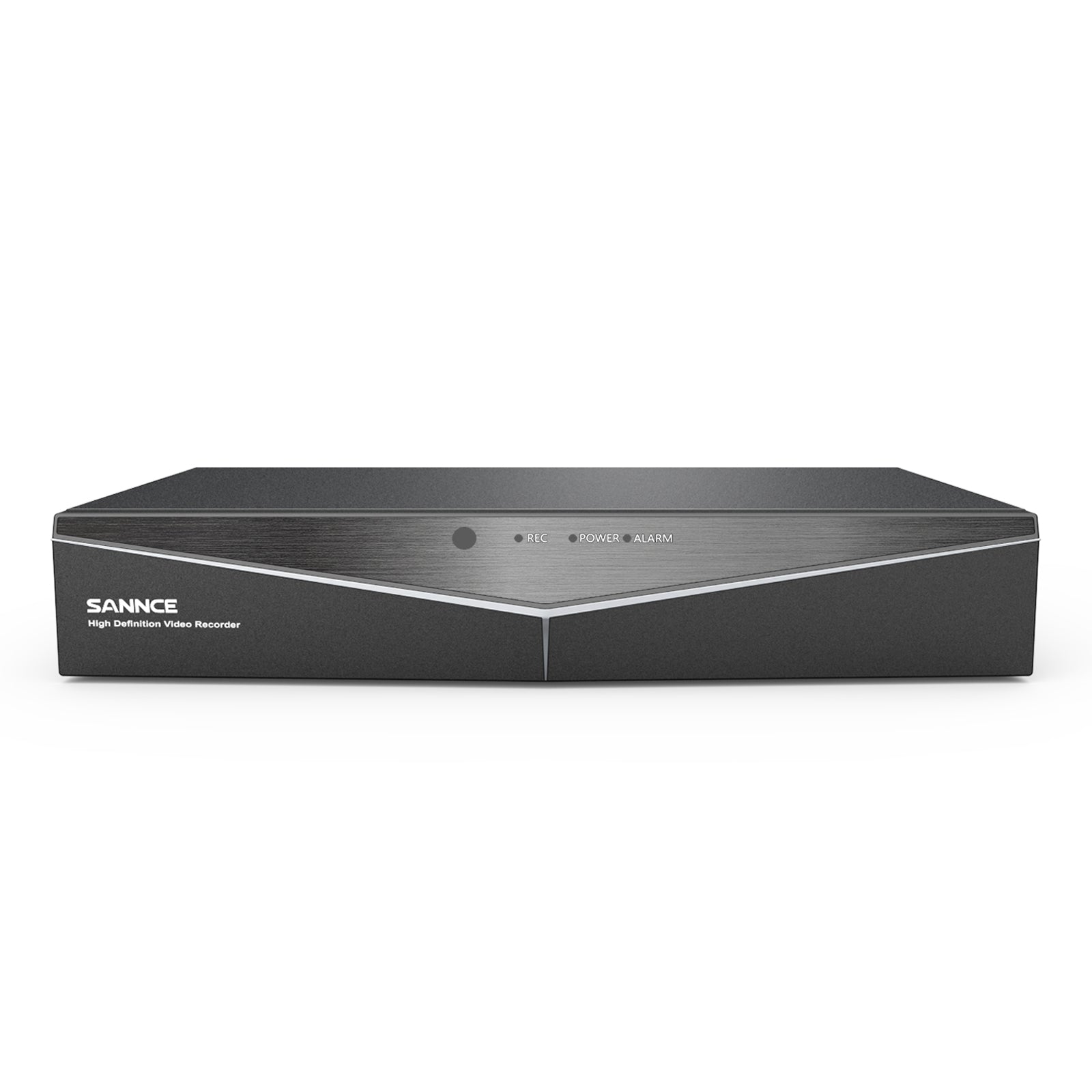

Compatible 5-in-1 DVR
The hybrid digital video recorder works with TVI, AHD, CVI, CVBS analog, and IP security cameras (up to 1080p Full HD resolution). You may add any type of security camera to this DVR for 24/7 recording.
Security in 1080p High Clarity
The DVR supports up to 1080p HDMI & VGA output so that you can connect the DVR to a TV or a monitor to get a local live view. Besides, it works seamlessly with 1080p analog security cameras, providing 1080p Lite input to identify any detail you need.

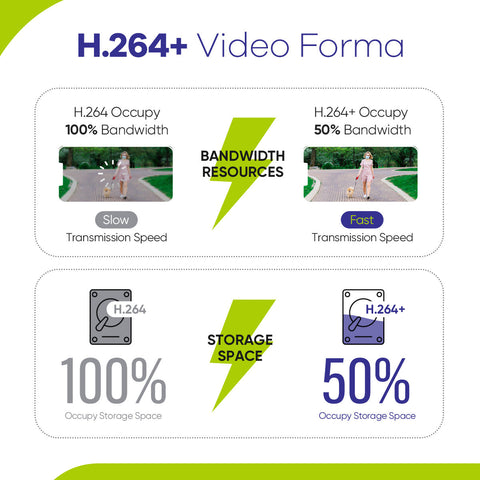

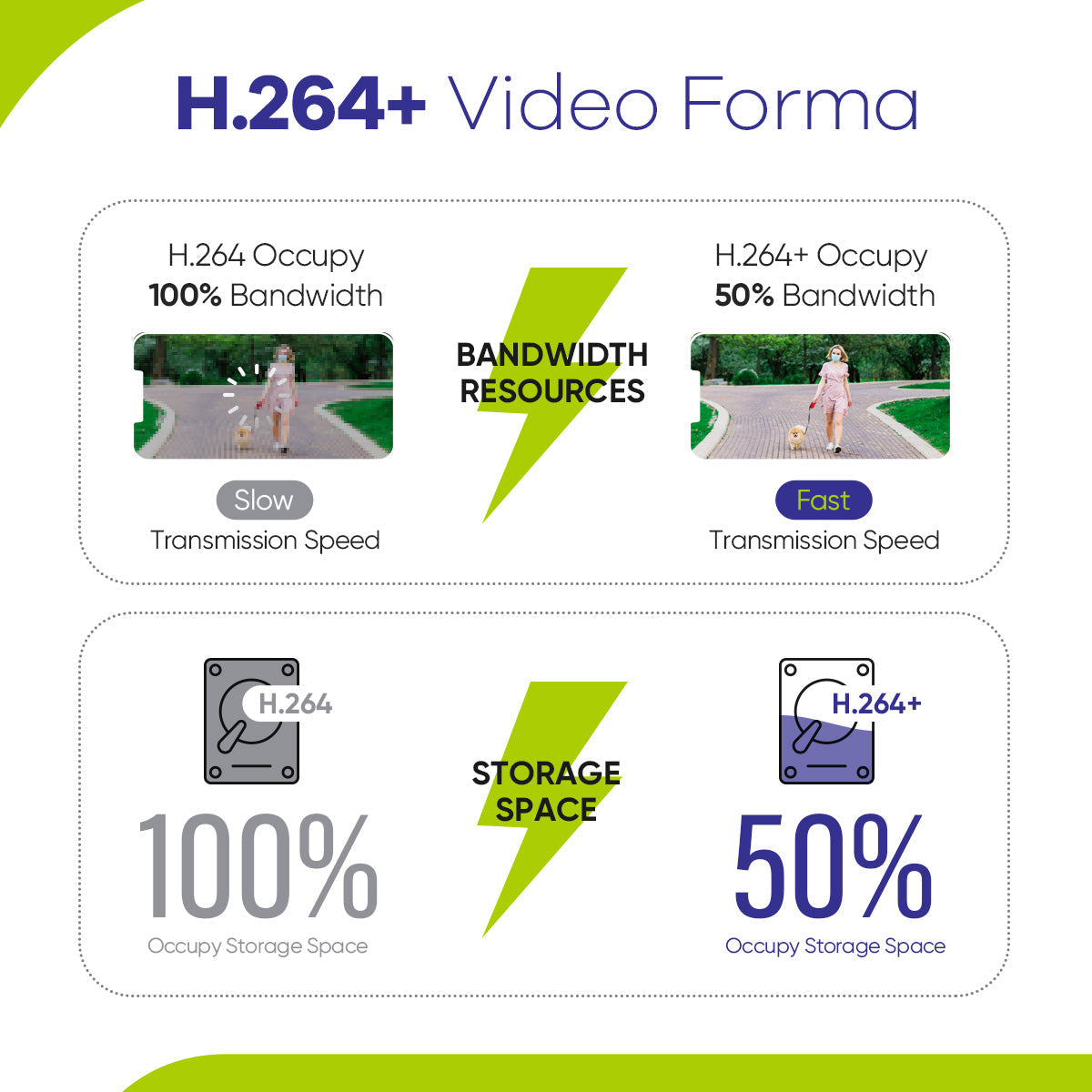

Compatible H.264+ Video Format
H.264+ coding saves more videos and consumes less bandwidth than H.264 systems. It is the most compatible video compression technology that provides you with ultra-smooth 1080p Lite streaming without all the data.
Humanoid Motion Detection alerts
With the advanced Humanoid Motion Detection algorithm, the DVR detects any difference and sends real-time app push notifications and email alerts to you. Thus, you can access the video recorder to check the motion alerts & take action.
Remote Access with All Your Devices

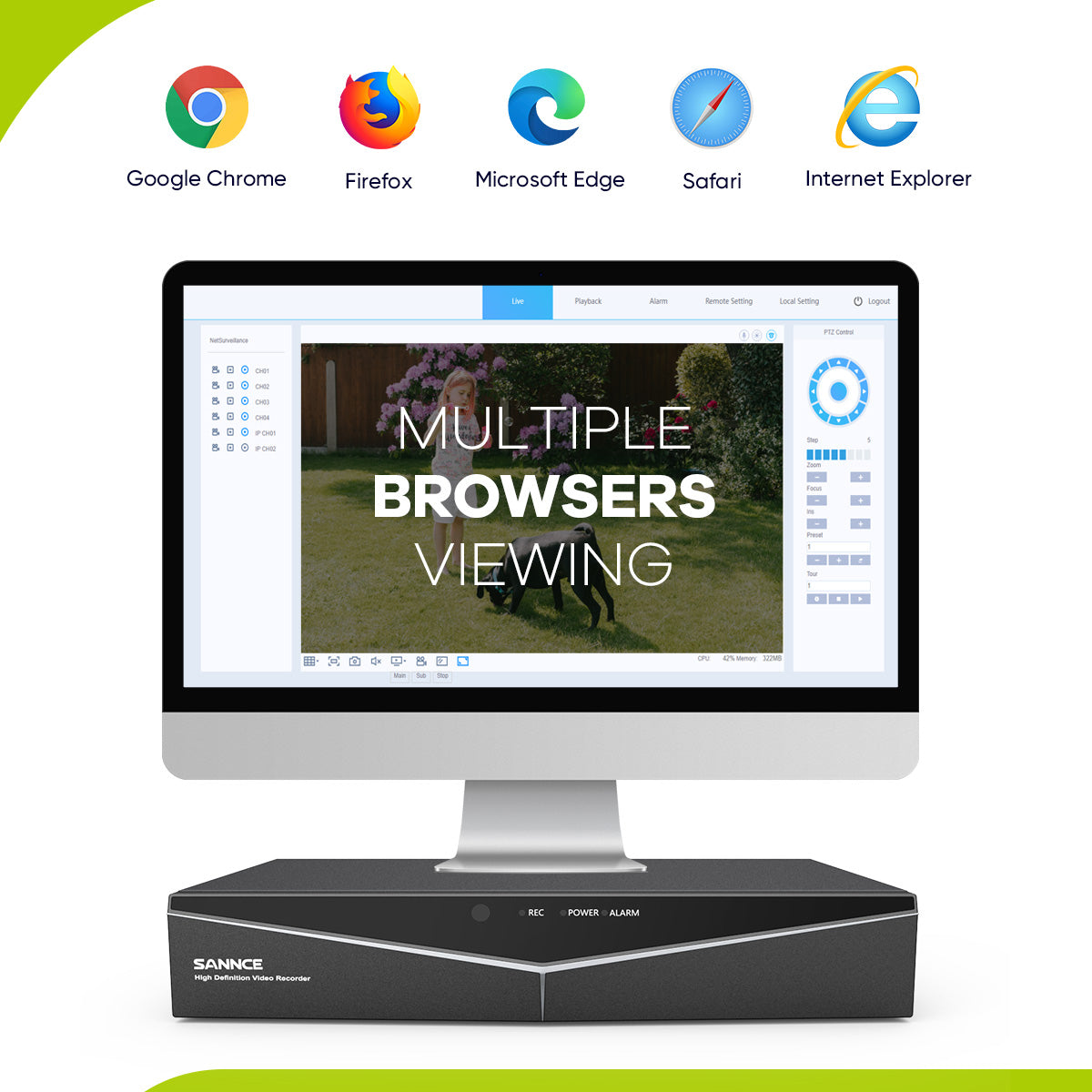

It’s just a breeze to control the DVR remotely via 3G/4G/5G or WiFi through your smartphones, tablets, computers, laptops, multi browsers, and VMS PC client. Keep tabs on your home & business when you’re working, shopping, or traveling.
Smart Motion-Activated Alerts
You can customize the motion detection zones such as the window, backdoor, garage, and yard. Receive instant app pushes or email alerts with snapshots whenever unusual motions are detected.

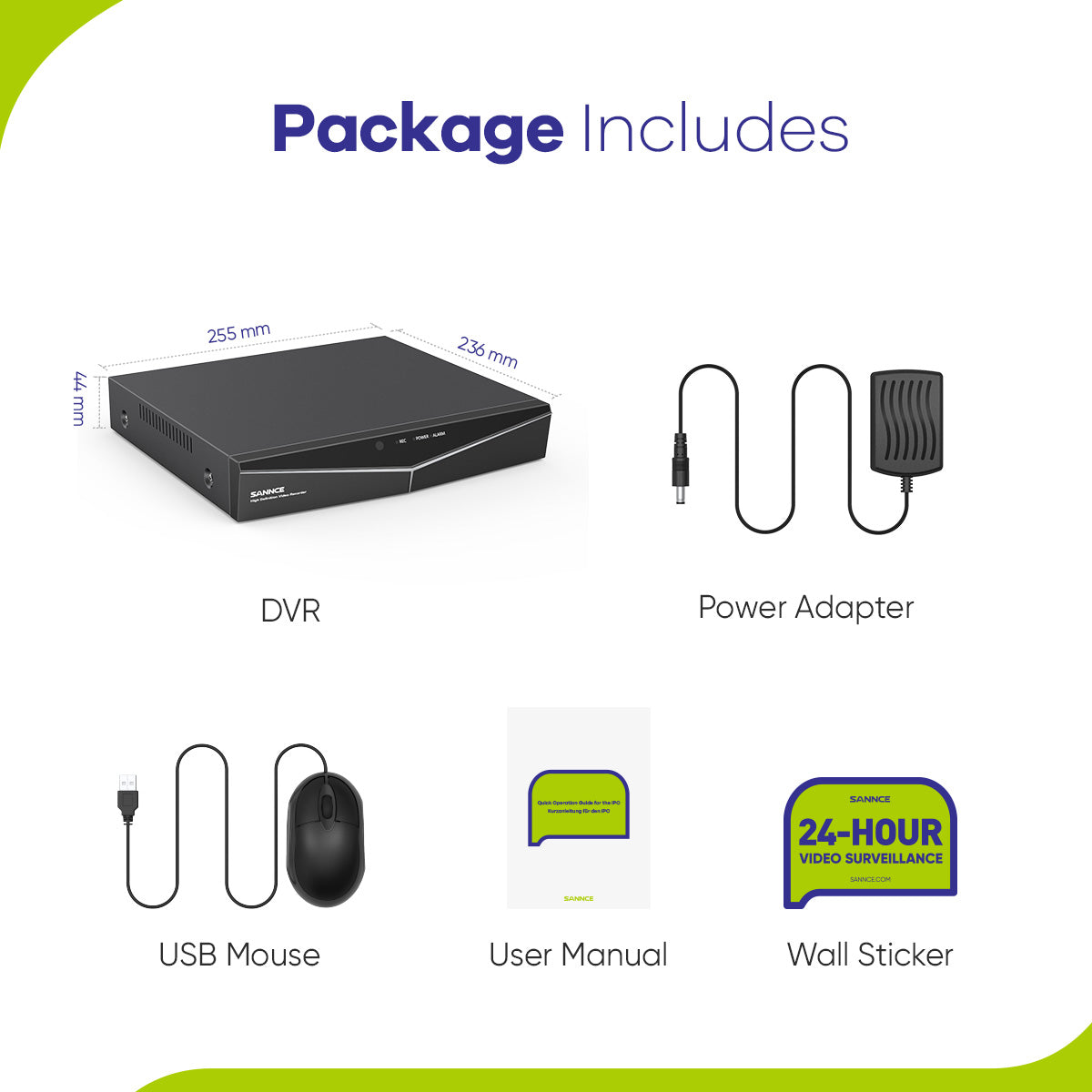

What’s in the Box
1X Power Adapter
1X USB Mouse
1X User Manual
1X Mounting Screws Bag
(Model Number: DT61BH)

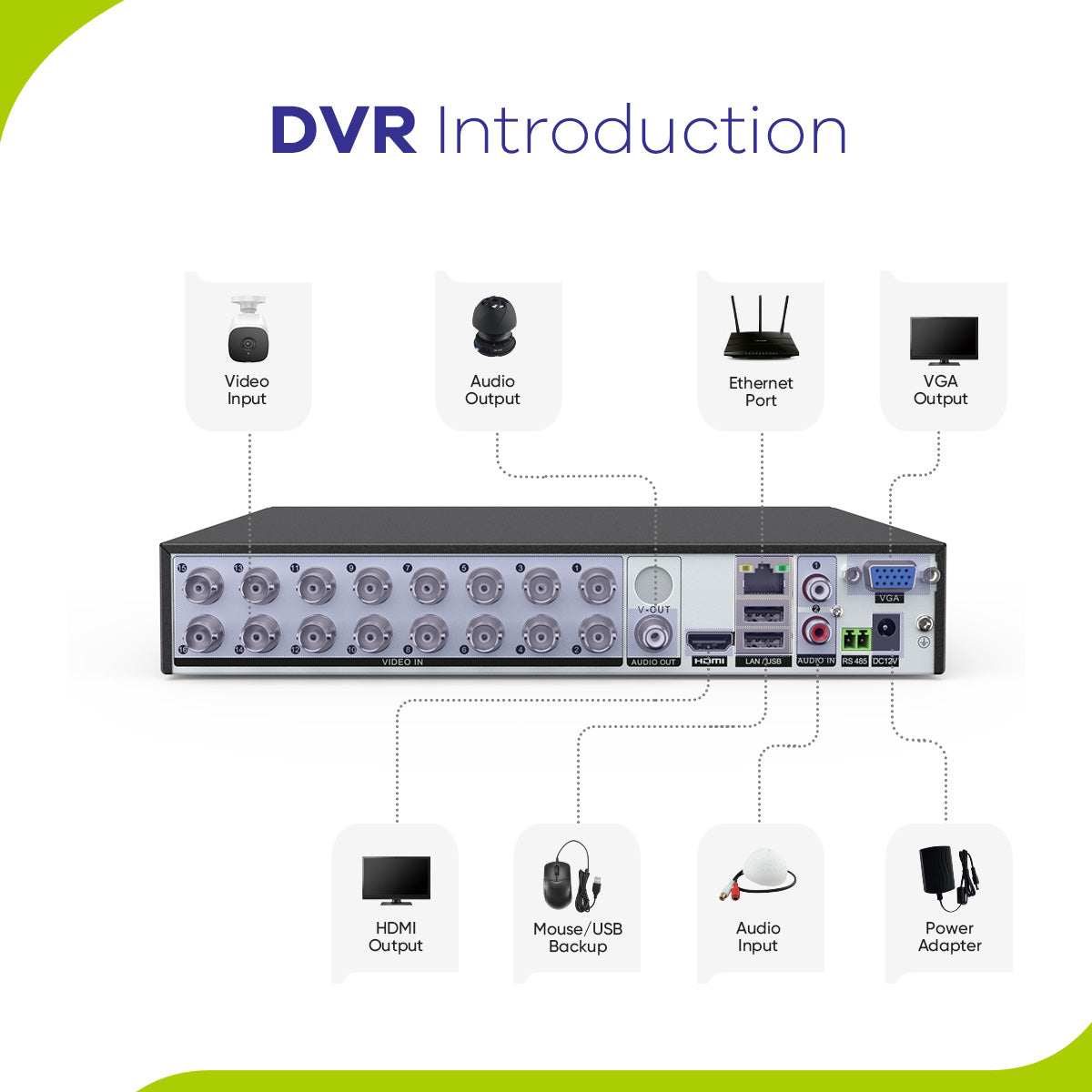

|Video & Audio||Video Compression||H.264+/H.264|
|Video Input||16CH HD Analog|
|Video Output||HDMI and VGA up to 1080p|
|Audio Input/Output||2/1 RCA, Support Coaxial Audio|
|Channel Type||Analog & IPC|
|Analog HD Recording Resolution||1080p Lite (960 X 1080@15fps)|
|IPC Recording Resolution||IP: 16*1080P；8*5MP|
|Hybird Recording Resolution||Hybird: 16*1080N@15fps(analog)+4*1080P|
|Playback Resolution||16CH (Analog mode) 1080p Lite|
|Record mode||Manual>Motion detection>Schedule|
|Inquire mode||Inquire by Time/Calendar/Event/Channel|
|Storage mode||Sata HDD|
|Backup||Network, USB storage|
|Hard Drive||HDD||1 SATA Interface|
|HDD Capacity||Up to 8 TB Capacity|
|Network Interface||1*10/100Mbps Ethernet port, RJ45 port|
|USB||USB 2.0 X2|
|PTZ control||1*RS485, Support for multiple PTZ protocol|
|General||Operating Power||DC 12V/2A|
|Working Temperature||14 °F – 131 °F/-10 °C – 55 °C|
|Consumption||<10W (Without HDD）|
|Humidity||10% -90% RH|
|Dimensions (W X H X D)||10.03" X 9.29" X 1.73”/255mm X 236mm X 44mm|
|Weight (Without Hard Disk)||≤ 2.2 lbs./1 kg (Without HDD)|
