1080p Lite Recording & Playback
The DVR supports 1080p Lite Full HD live stream and playback. You are able to connect security cameras with up to 1080p resolution to the DVR for crystal images.
-
Smart Motion Detection Alerts
When there is any motion event, the DVR will push instant app notifications and email alerts to your smartphone. You will always stay in the know wherever you are.
-

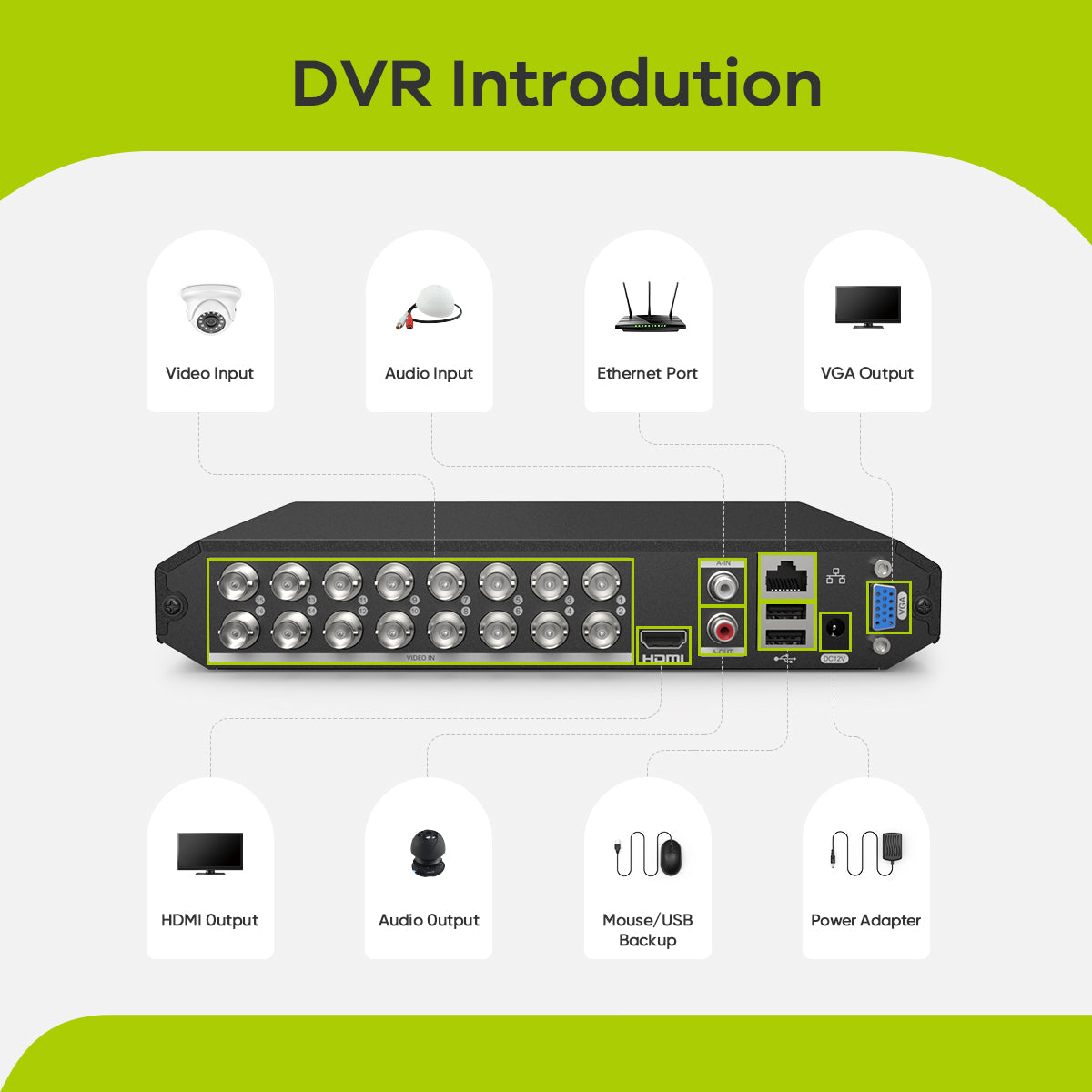

1080p HDMI & VGA Output
The video recorder supports 1080p HDMI & VGA output, so that you can connect the DVR to a TV or a monitor for local live stream and video playback.
Powerful 5-in-1 Integration
The hybrid digital video recorder works seamlessly with TVI, AHD, CVI, CVBS analog, and IP security cameras (up to 1080p) for 24/7 non-stop recording and monitoring.
-
Unlimited Remote Access
With free SANNCE App & Client, you are freely to control the DVR remotely via 3G/4G/5G or WiFi from your smartphones, tablets, computers, laptops.
-
Remote Live View with Browsers
Besides the app & client software, you may access the digital video recorder via VMS software and the Internet Explorer browser
-
Flexible ONVI-F Protocol
The hybrid ONVI-F digital video recorder is compatible with SANNCE security cameras, third-party analog wired security cameras, and ONVI-F IP cameras for seamless integration.
General
| DVR | ||||
|
Video & Audio |
Video Compression | H.264+ | Video-Input | 4/8/16CH HD Analog |
| Video Output | HDMI and VGA up to 1080p | Audio Input/Output | 1/1 RCA; Support Coaxial Audio | |
| Analog HD Recording Resolution | 1080P Lite | ONVI-F Protocols | Support | |
| Analog HD Playback Resolution | 1080P Lite | Channel Type | Analog&IPC | |
| Max Playback Channel | 4/8/16CH (Full Analog Mode) | IPC Resolution | 2MP | |
| Hard Drive | HDD | 1 SATA Interface | HDD Capacity | Up to 8 TB Capacity |
| External Interface | Network Interface | RJ45 X1 (10/100 M) | USB | USB2.0 X2 |
|
General |
Operating Power | DC 12 V | Dimensions (W X H X D) | 10.2" X 8.7" X 1.8”/260 X 222 X 45 mm |
| Working Temperature | '14 °F – 131 °F/-10 °C – 55 °C | Weight (Without Hard Disk) | ≤ 2.2 lbs./1 kg (Without HDD) | |
